Pinouts and Timing

Atari Microprocessor Game System


Ceramic Package Bonding Diagram


TIA Timing Characteristics


TIA 00-02 and Lum Timing

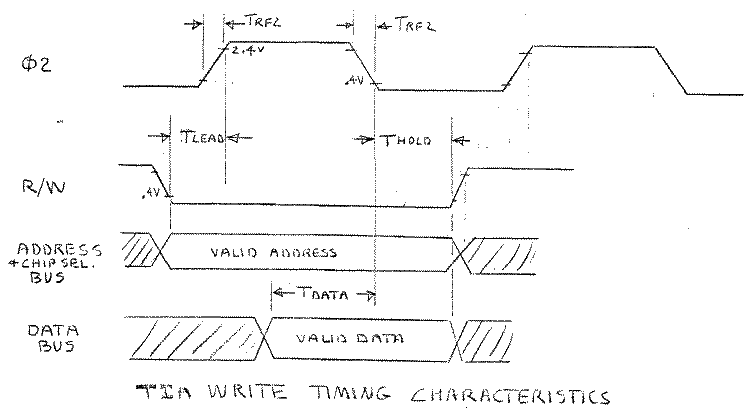

TIA Write Timing Chareristics


TIA Read Timing Chareristics


TIA Comp-Syn and Ready Timing


RSYNC-RES00-H0-H02-SHB-02-00


TIA RSYNC and Blank and Ready Timing


Pinouts Atari TIA
